Acknowledgements

• The features undo and redo were inspired by similar features of the SE-EDU Address Book (Level 4) https://se-education.org/addressbook-level4/
• CourseBook is built upon the AddressBook-Level3 (AB3) foundation created by the SE-EDU initiative

1. Introduction

1.1 About CourseBook

CourseBook is a desktop application designed for university students to efficiently manage their academic network by organizing contacts based on shared courses. It combines the efficiency of a Command Line Interface (CLI) with the intuitiveness of a Graphical User Interface (GUI), making it ideal for fast typists who want quick access to their academic contacts.

Key Features:

• Organize contacts by course enrollment
• Manage favorites for quick access to close friends
• Search across multiple contact fields
• Track birthdays and sort by upcoming birthdays
• Color-code courses for visual clarity
• Comprehensive undo/redo functionality
• Customizable themes

1.2 Purpose of this Guide

This Developer Guide provides comprehensive documentation for developers who wish to:

• Understand the architecture and design decisions behind CourseBook
• Contribute new features or enhancements
• Maintain and debug the existing codebase
• Extend the application for custom use cases

1.3 Target Audience

This guide is intended for:

• Software Engineers working on CourseBook
• Module Tutors evaluating the project design
• Contributors from the open-source community
• Students learning software architecture patterns

2. Setting up, getting started

Refer to the guide Setting up and getting started.

3. Architecture

Tip: The .puml files used to create diagrams in this document are in the docs/diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

3.1 High-Level Architecture

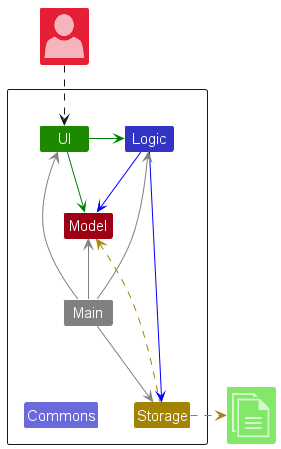

Figure 1: The above diagram shows the high-level design of CourseBook with five main components: Main, UI, Logic, Model, Storage, and Commons

The Architecture Diagram above explains the high-level design of the application. CourseBook follows a 4-layer architecture with a shared Commons component containing utility classes used across layers.

Main components of the architecture

Main (consisting of classes Main and MainApp) is responsible for application launch and shutdown.

• At app launch, it initializes the other components in the correct sequence and connects them.
• At shutdown, it saves user preferences and shuts down the other components.

The four main functional components are:

• UI: The User Interface component that renders the GUI and receives user input.
• Logic: The command executor that parses and executes user commands.
• Model: Holds application data in memory and manages state.
• Storage: Reads data from and writes data to persistent storage (JSON files).

Commons represents a collection of classes used by multiple other components, including logging, configuration management, and utility functions.

How the architecture components interact with each other

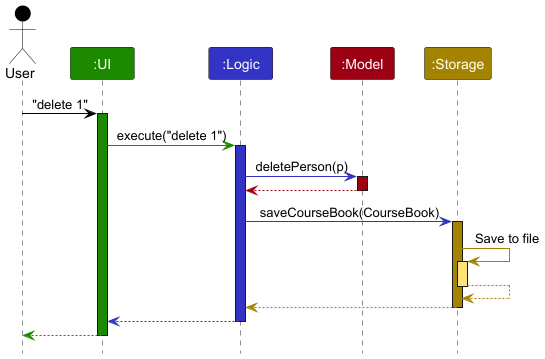

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

Figure 2: Shows inter-component interactions for delete 1 command

Each of the four main components:

• Defines its API in an interface with the same name as the component.
• Implements its functionality using a concrete {Component Name}Manager class (which implements the corresponding API interface).

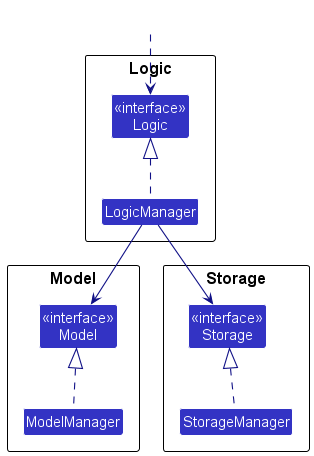

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which implements the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside components from being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

Figure 3: Shows the interface-implementation pattern for component managers

The sections below give more details of each component.

3.2 Architectural Patterns and Principles

CourseBook employs several key architectural patterns:

1. Layered Architecture

• Clear separation between UI, Logic, Model, and Storage layers
• Each layer depends only on the layers below it
• Changes to one layer have minimal impact on others

2. Dependency Inversion Principle (DIP)

• Components depend on abstractions (interfaces) rather than concrete implementations
• Example: LogicManager depends on the Model interface, not ModelManager

3. Single Responsibility Principle (SRP)

• Each component has a single, well-defined responsibility
• Example: Storage handles only persistence, not business logic

4. Command Pattern

• All user actions are represented as Command objects
• Enables undo/redo functionality and command history

5. Observer Pattern

• UI components observe Model changes through JavaFX ObservableList
• Automatic UI updates when data changes

Design Rationale: These patterns enable maintainability, testability, and extensibility. The layered architecture with dependency inversion allows components to be tested independently and replaced without affecting other parts of the system.

4. UI Component

API: Ui.java

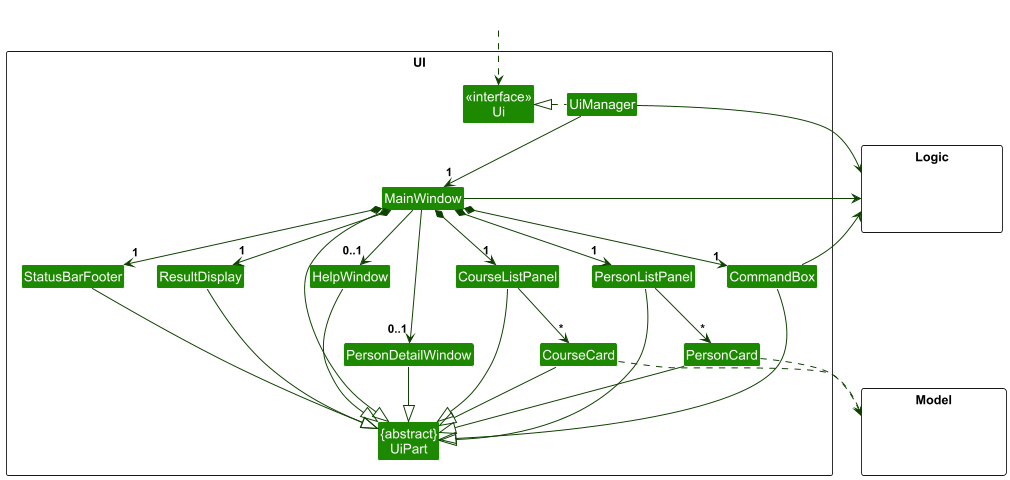

Figure 4: Shows the structure of UI components including MainWindow, PersonListPanel, CourseListPanel, CommandBox, ResultDisplay, etc.

4.1 Structure

The UI consists of a MainWindow that is made up of several parts:

• CommandBox - Text input field for user commands
• ResultDisplay - Shows command execution results and feedback
• PersonListPanel - Displays the list of persons (contains multiple PersonCard objects)
• CourseListPanel - Displays the list of courses (contains multiple CourseCard objects)
• StatusBarFooter - Shows the data file path
• HelpWindow - Displays help information (opened on demand)
• PersonDetailWindow - Shows detailed information for a specific person (opened on demand)

All these UI parts, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

4.2 Technology Stack

The UI component uses the JavaFX UI framework. The layout of these UI parts is defined in matching .fxml files located in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml.

4.3 Responsibilities

The UI component:

• Executes user commands using the Logic component
• Listens for changes to Model data so that the UI can be updated with the modified data automatically
• Keeps a reference to the Logic component because the UI relies on the Logic to execute commands
• Depends on some classes in the Model component, as it displays Person and Course objects residing in the Model

4.4 Key Interactions

Command Execution Flow:

1. User types a command in CommandBox and presses Enter
2. CommandBox passes the command text to Logic.execute()
3. Logic returns a CommandResult object
4. ResultDisplay shows the feedback message from CommandResult
5. If CommandResult contains flags (e.g., showHelp, showPersonDetail), appropriate windows are opened

Data Binding:

• PersonListPanel is bound to Logic.getFilteredPersonList() (an ObservableList<Person>)
• CourseListPanel is bound to Logic.getFilteredCourseList() (an ObservableList<Course>)
• When the Model updates these lists, the UI automatically refreshes

4.5 Theming

CourseBook supports multiple themes:

• Dark (default) - DarkTheme.css
• Blue - BlueTheme.css
• Love - LoveTheme.css
• Tree - TreeTheme.css

Each theme consists of:

• A main stylesheet (e.g., DarkTheme.css)
• An extensions file (e.g., Extensions.css or BlueExtensions.css)

The theme command triggers a theme change by updating the CommandResult with the new CSS file paths, which MainWindow applies dynamically.

5. Logic Component

API: Logic.java

5.1 Structure

Here’s a (partial) class diagram of the Logic component:

Figure 5: Shows LogicManager, CourseBookParser, Command hierarchy, and parser classes

5.2 Command Execution Lifecycle

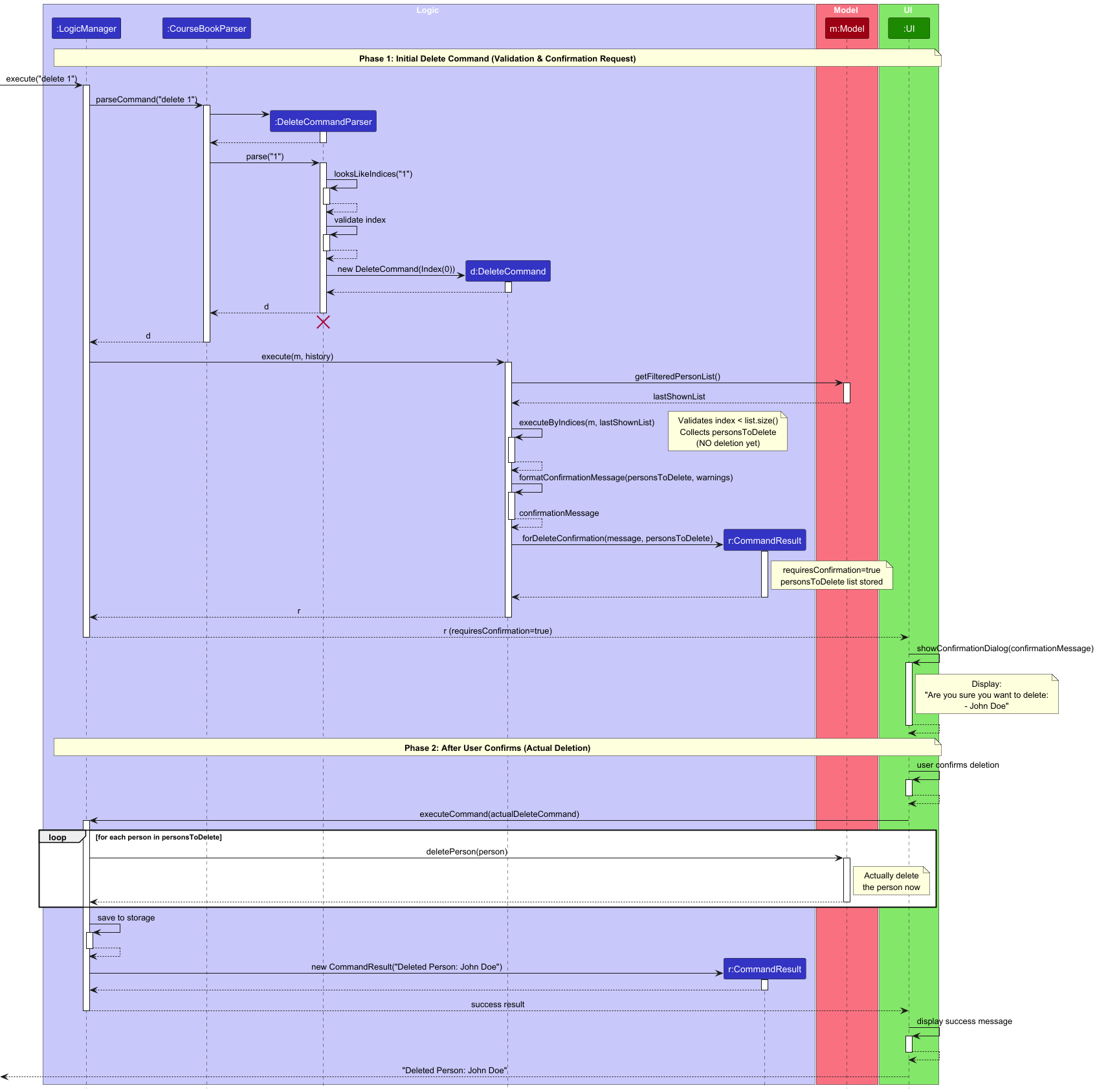

The sequence diagram below illustrates the interactions within the Logic component for the API call execute("delete 1").

Figure 6: Shows the detailed flow from parsing to execution for a delete command

Note: The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline continues till the end of diagram.

5.3 How the Logic Component Works

Step-by-Step Execution:

1. User Input Reception: When Logic is called upon to execute a command, it receives a command string (e.g., "delete 1").

2. Command Parsing: The string is passed to a CourseBookParser object which:
   • Tokenizes the input to identify the command word (e.g., "delete")
   • Creates the appropriate command-specific parser (e.g., DeleteCommandParser)
   • The specific parser parses the arguments and creates a Command object (e.g., DeleteCommand)
3. Command Execution: The Command object is executed by LogicManager:
   • command.execute(model, history) is called
   • The command interacts with the Model to perform its action (e.g., delete a person)
   • Note: In the code, this may involve multiple interactions with the Model
4. Result Encapsulation: The result of the command execution is encapsulated as a CommandResult object which contains:
   • Feedback message to display to the user
   • Flags indicating required UI actions (e.g., showHelp, exit, showPersonDetail)
   • Theme CSS file paths (if theme was changed)

5. Persistence: If the Model was modified during execution, LogicManager automatically saves the data to Storage.

6. Command History: The command text is added to CommandHistory for later retrieval via the history command.

5.4 Parsing Architecture

Here are the classes in Logic used for parsing a user command:

Figure 7: Shows the parser hierarchy and how CourseBookParser dispatches to specific command parsers

How Parsing Works:

• When called upon to parse a user command, the CourseBookParser class:
  1. Uses ArgumentTokenizer to split the command into a command word and argument string
  2. Creates an XYZCommandParser based on the command word (e.g., AddCommandParser for add)
  3. The XYZCommandParser uses ArgumentMultimap and ParserUtil to extract and validate arguments
  4. Creates and returns an XYZCommand object (e.g., AddCommand)
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser) inherit from the Parser interface so that they can be treated similarly where possible (e.g., during testing).

5.5 Command Classes

CourseBook implements 27 command classes following the Command Pattern:

Person Management:

• AddCommand - Add new contact
• EditCommand - Edit existing contact details
• DeleteCommand - Delete one or more contacts
• ListCommand - List all persons
• FindCommand - Search persons by keywords
• ViewPersonCommand - Show detailed person information
• FavouriteCommand, UnfavouriteCommand, FavCommand - Manage favorites
• BirthdayCommand - Add/update birthday
• SortCommand, SortBirthdayCommand - Sort persons

Course Management:

• AddCourseCommand - Add courses to a person
• RemoveCourseCommand - Remove courses from a person
• EditCourseColorCommand - Change course color globally
• ListCoursesCommand - List all courses
• ListByCourseCommand - Filter persons by course

Application Commands:

• ClearCommand - Clear all data
• ExitCommand - Exit application
• HelpCommand - Show help
• HistoryCommand - Show command history
• SummaryCommand - Display summary statistics
• ThemeCommand - Change theme
• UndoCommand, RedoCommand - Undo/redo operations
• ConfirmDeleteCommand - Confirm deletion (internal use)

5.6 Argument Parsing Infrastructure

Key Classes:

• CliSyntax: Defines prefix constants (e.g., PREFIX_NAME = new Prefix("n/"), PREFIX_PHONE = new Prefix("p/"))
• ArgumentTokenizer: Splits arguments string by prefixes (e.g., "n/John p/91234567" → map of {n/ -> "John", p/ -> "91234567"})
• ArgumentMultimap: Maps prefixes to their values, supports multiple values per prefix
• ParserUtil: Contains static utility methods for parsing and validating specific types (e.g., parseIndex(), parseName(), parsePhone())

Example - Parsing add n/John p/91234567 e/john@example.com a/123 Main St:

1. CourseBookParser identifies command word "add"
2. Creates AddCommandParser, passes arguments string "n/John p/91234567 e/john@example.com a/123 Main St"
3. AddCommandParser uses ArgumentTokenizer.tokenize() to create ArgumentMultimap
4. Calls ParserUtil.parseName(argMultimap.getValue(PREFIX_NAME)) → returns Name object
5. Similarly parses phone, email, address, tags, courses
6. Creates and returns AddCommand(name, phone, email, address, tags, courses)

5.7 Design Rationale

Why Command Pattern?

• Undo/Redo: Each command can be stored in history and reversed
• Testability: Commands can be tested in isolation
• Extensibility: Adding new commands doesn’t require changes to existing code

Why Separate Parsers?

• Single Responsibility: Each parser handles one command type
• Maintainability: Changes to command syntax affect only one parser
• Reusability: Common parsing logic is extracted to ParserUtil

6. Model Component

API: Model.java

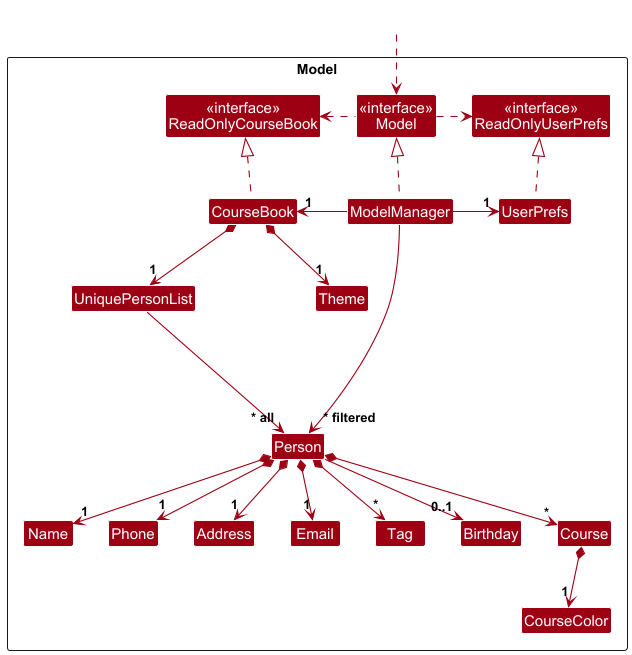

Figure 8: Shows ModelManager, CourseBook, VersionedCourseBook, Person, Course, Tag, UniquePersonList, and their relationships

6.1 Structure and Responsibilities

The Model component:

• Stores the address book data in memory (all Person objects are contained in a UniquePersonList object within CourseBook)
• Stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ (the UI is bound to this list so that the UI automatically updates when the data in the list changes)
• Stores a UserPrefs object that represents the user’s preferences (file paths, GUI settings, theme). This is exposed to the outside as a ReadOnlyUserPrefs object.
• Does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)
• Manages undo/redo history through VersionedCourseBook
• Maintains a dynamically updated ObservableList<Course> derived from all persons’ course enrollments

6.2 Data Model

Person Entity:

A Person object consists of:

• Name (required, alphanumeric + spaces)
• Phone (required, 7-15 digits)
• Email (required, valid email format)
• Address (required, non-empty string)
• Set<Tag> (optional, 0 or more tags)
• Set<Course> (optional, 0 or more courses)
• Birthday (optional, format: dd-MM-yyyy)
• isFavourite (boolean flag)

Uniqueness Constraint: No two persons can have the same name (case-insensitive, whitespace-normalized) OR the same phone OR the same email.

Course Entity:

A Course object consists of:

• courseCode (required, alphanumeric + hyphens, uppercase)
• CourseColor (enum: GREEN, BLUE, RED, ORANGE, PINK, PURPLE, GRAY, YELLOW)

Tag Entity:

A Tag is a simple label with a tagName (alphanumeric only).

6.3 Alternative Model Design

Note: An alternative (arguably, a more OOP) model is given below. It has a Tag list in the CourseBook, which Person references. This allows CourseBook to only require one Tag object per unique tag, instead of each Person needing their own Tag objects.

Figure 9: Shows a design where CourseBook maintains a centralized Tag list referenced by Persons

Current Design (Tag/Course instances per Person):

• Pros: Simpler implementation, easier to serialize/deserialize, no referential integrity concerns
• Cons: Duplicate objects in memory (multiple identical Tag/Course instances)

Alternative Design (Centralized Tag/Course list):

• Pros: Memory efficient, single source of truth, easier global course color management
• Cons: More complex implementation, referential integrity issues, cascading deletions

Chosen Approach: CourseBook uses the current design (instances per Person) for Tags but effectively implements a hybrid approach for Courses - each Person has Course instances, but course colors are managed globally through Model methods.

6.4 Undo/Redo Implementation

The undo/redo mechanism is facilitated by VersionedCourseBook, which extends CourseBook with undo/redo history stored internally as a courseBookStateList and currentStatePointer.

Key Operations:

• VersionedCourseBook#commit() — Saves the current course book state in its history
• VersionedCourseBook#undo() — Restores the previous course book state from its history
• VersionedCourseBook#redo() — Restores a previously undone course book state from its history

These operations are exposed in the Model interface as Model#commitCourseBook(), Model#undoCourseBook(), and Model#redoCourseBook() respectively.

6.5 Undo/Redo Example Usage Scenario

Step 1. Initial State The user launches the application for the first time. The VersionedCourseBook will be initialized with the initial course book state, and the currentStatePointer pointing to that single course book state.

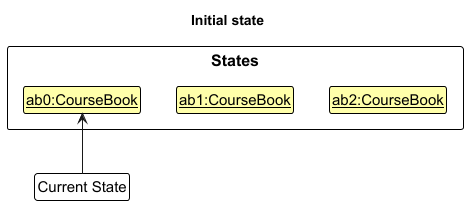

Figure 10: Shows initial state with one CourseBook snapshot and pointer at index 0

Step 2. Delete Command The user executes delete 5 command to delete the 5th person in the course book. The delete command calls Model#commitCourseBook(), causing the modified state of the course book after the delete 5 command executes to be saved in the courseBookStateList, and the currentStatePointer is shifted to the newly inserted state.

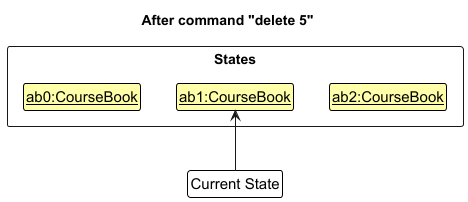

Figure 11: Shows two states: initial and after delete, pointer at index 1

Step 3. Add Command The user executes add n/David …​ to add a new person. The add command also calls Model#commitCourseBook(), causing another modified course book state to be saved into the courseBookStateList.

Figure 12: Shows three states, pointer at index 2

Note: If a command fails its execution, it will not call Model#commitCourseBook(), so the course book state will not be saved into the courseBookStateList.

Step 4. Undo The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoCourseBook(), which will shift the currentStatePointer once to the left, pointing it to the previous course book state, and restores the course book to that state.

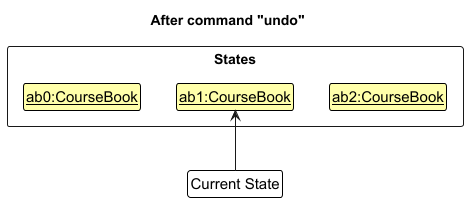

Figure 13: Shows three states with pointer moved back to index 1

Note: If the currentStatePointer is at index 0, pointing to the initial CourseBook state, then there are no previous CourseBook states to restore. The undo command uses Model#canUndoCourseBook() to check if this is the case. If so, it will return an error to the user rather than attempting to perform the undo.

6.6 Undo Sequence Diagram (Logic Layer)

The following sequence diagram shows how an undo operation goes through the Logic component:

Figure 14: Shows the flow from UndoCommand through LogicManager and back

Note: The lifeline for UndoCommand should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

6.7 Undo Sequence Diagram (Model Layer)

Similarly, how an undo operation goes through the Model component is shown below:

Figure 15: Shows interactions between ModelManager and VersionedCourseBook during undo

6.8 Redo

The redo command does the opposite — it calls Model#redoCourseBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the course book to that state.

Note: If the currentStatePointer is at index courseBookStateList.size() - 1, pointing to the latest course book state, then there are no undone CourseBook states to restore. The redo command uses Model#canRedoCourseBook() to check if this is the case. If so, it will return an error to the user rather than attempting to perform the redo.

Step 5. Non-Modifying Command The user then decides to execute the command list. Commands that do not modify the course book, such as list, will usually not call Model#commitCourseBook(), Model#undoCourseBook(), or Model#redoCourseBook(). Thus, the courseBookStateList remains unchanged.

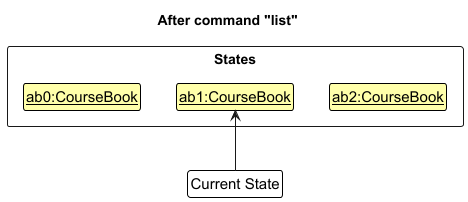

Figure 16: Shows three states with pointer still at index 1 after list command

Step 6. State Branching The user executes clear, which calls Model#commitCourseBook(). Since the currentStatePointer is not pointing at the end of the courseBookStateList, all course book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

Figure 17: Shows two states: original and clear state, with the “add David” state purged

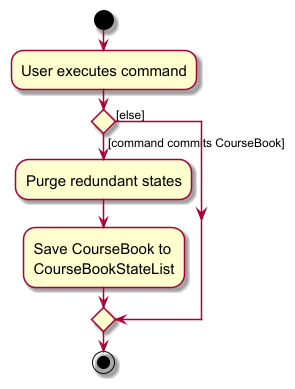

The following activity diagram summarizes what happens when a user executes a new command:

Figure 18: Shows decision flow: if command modifies data → check if states after pointer exist → purge if yes → add new state

6.9 Design Considerations for Undo/Redo

Aspect: How undo & redo executes:

Alternative 1 (current choice): Saves the entire course book.

• Pros: Easy to implement, guaranteed consistency (entire state snapshot)
• Cons: My have performance issues in terms of memory usage (multiple full copies in memory)

Alternative 2: Individual command undo (Command Pattern with reverse operations).

• Pros: Memory efficient (only store deltas), potentially faster
• Cons: Complex implementation, each command needs reverse logic, error-prone (e.g., reversing an edit requires storing old values)

Rationale: CourseBook uses Alternative 1 because:

1. Simplicity: Easier to implement and maintain
2. Reliability: No risk of inconsistent state from failed reverse operations
3. Acceptable Trade-off: For typical usage (100-1000 persons), memory overhead is acceptable on modern systems
4. Course Color Consistency: Full snapshots preserve global course color mappings correctly

Enhancement Possibility: Future versions could implement a hybrid approach where only changed persons are stored with copy-on-write semantics to reduce memory usage while maintaining simplicity.

6.10 Filtering and Sorting

Filtered Lists:

• filteredPersons is a FilteredList<Person> wrapper around versionedCourseBook.getPersonList()
• Predicates are set via Model#updateFilteredPersonList(Predicate<Person> predicate)
• Used by FindCommand, ListByCourseCommand, FavCommand

Sorting:

• Model#sortSelectedPersons(Comparator<Person> comparator) re-orders the underlying CourseBook
• Used by SortCommand (sort by name) and SortBirthdayCommand
• Note: Sorting modifies the model directly (not just a view), so it can be undone

Course List:

• courseList is dynamically updated by listening to changes in the person list
• Extracts all unique courses from all persons
• Sorted alphabetically by course code

7. Storage Component

API: Storage.java

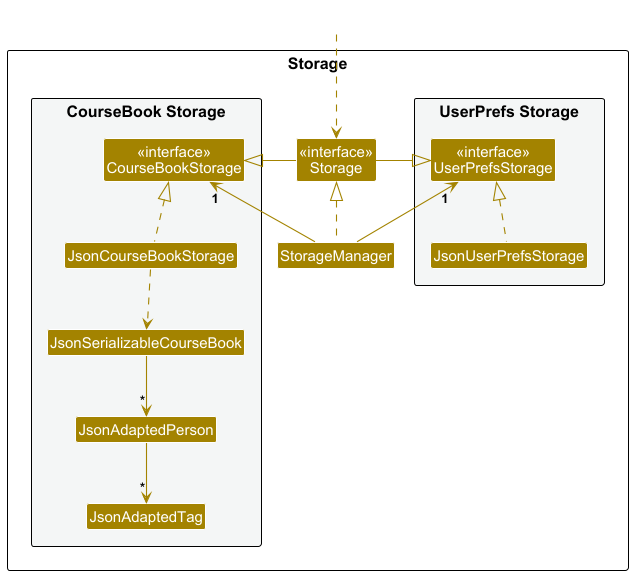

Figure 19: Shows StorageManager, JsonCourseBookStorage, JsonUserPrefsStorage, and JSON adapter classes

7.1 Structure and Responsibilities

The Storage component:

• Can save both address book data and user preference data in JSON format, and read them back into corresponding objects
• Inherits from both CourseBookStorage and UserPrefsStorage, which means it can be treated as either one (if only the functionality of one is needed)
• Depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

7.2 JSON Serialization

CourseBook Data Structure (coursebook.json):

{
  "persons": [
    {
      "name": "John Doe",
      "phone": "98765432",
      "email": "john@example.com",
      "address": "123 Main St",
      "birthday": "20-02-2000",
      "favourite": true,
      "tagged": ["friend", "classmate"],
      "courses": [
        {"courseCode": "CS2103T", "color": "YELLOW"},
        {"courseCode": "CS2101", "color": "GREEN"}
      ]
    }
  ],
  "theme": "DARK"
}

User Preferences Data Structure (preferences.json):

{
  "guiSettings": {
    "windowWidth": 900.0,
    "windowHeight": 740.0,
    "windowCoordinates": {
      "x": 100,
      "y": 100
    }
  },
  "courseBookFilePath": "data/coursebook.json"
}

7.3 JSON Adapter Classes

To convert between Java objects and JSON, CourseBook uses Jackson library with custom adapter classes:

• JsonAdaptedPerson - Converts Person ↔ JSON
• JsonAdaptedCourse - Converts Course ↔ JSON
• JsonAdaptedTag - Converts Tag ↔ JSON

Example - JsonAdaptedPerson:

// Converting Person to JSON JsonAdaptedPerson jsonPerson = new JsonAdaptedPerson(personObject); // Jackson serializes jsonPerson to JSON

// Converting JSON to Person JsonAdaptedPerson jsonPerson = // deserialized from JSON personObject = jsonPerson.toModelType(); // throws IllegalValueException if invalid

7.4 Data Loading and Saving Flow

Application Startup (Load):

1. MainApp.init() creates JsonCourseBookStorage and JsonUserPrefsStorage
2. StorageManager wraps both storages
3. MainApp.initModelManager() calls storage.readCourseBook()
4. JsonCourseBookStorage.readCourseBook():
   • Reads JSON file using Jackson
   • Deserializes to JsonSerializableCourseBook (contains list of JsonAdaptedPerson)
   • Converts each JsonAdaptedPerson to Person via toModelType()
   • Returns Optional<ReadOnlyCourseBook>
5. If file not found or invalid, loads sample data or empty CourseBook

During Runtime (Save):

1. User executes command that modifies data (e.g., add, delete, edit)
2. Command calls model.commitCourseBook() (for undo/redo)
3. LogicManager detects courseBookModified flag
4. LogicManager calls storage.saveCourseBook(model.getCourseBook())
5. JsonCourseBookStorage.saveCourseBook():
   • Converts CourseBook to JsonSerializableCourseBook
   • Converts each Person to JsonAdaptedPerson
   • Serializes to JSON file using Jackson

Application Shutdown:

1. MainApp.stop() saves user preferences via storage.saveUserPrefs(model.getUserPrefs())

7.5 Error Handling and Data Integrity

File Not Found:

• If coursebook.json doesn’t exist on startup → load sample data (first run experience)
• If preferences.json doesn’t exist → use default preferences

Corrupted Data:

• If JSON is malformed → DataLoadingException is thrown → log warning → start with empty CourseBook
• If JSON is valid but data is invalid (e.g., invalid email format) → IllegalValueException during toModelType() → that person is skipped

Write Failures:

• If disk is full or permissions denied → IOException → command fails with error message → user can retry

Data Validation:

• All data is validated during JSON → Model conversion via JsonAdaptedPerson.toModelType()
• Same validation logic as used by parsers (e.g., Name.isValidName(), Email.isValidEmail())

7.6 File Paths and Configuration

Default Paths:

• CourseBook data: data/coursebook.json
• User preferences: preferences.json
• Application config: config.json

Custom Paths:

• User can specify custom config file via command line: java -jar coursebook.jar --config myconfig.json
• User preferences file path is read from config
• CourseBook file path is read from preferences

Cross-Platform Compatibility:

• File paths use Path objects (platform-independent)
• Automatic creation of parent directories if they don’t exist

7.7 Design Rationale

Why JSON over XML?

• Human-readable: Easier for advanced users to edit manually
• Compact: Smaller file size
• Native Java Support: Jackson library is mature and widely used

Why Jackson over Gson?

• Flexibility: Supports complex object graphs
• Performance: Faster serialization/deserialization
• Annotations: Cleaner code with annotations for custom serialization

Why Separate Adapters?

• Single Responsibility: Each adapter handles one entity type
• Testability: Adapters can be tested independently
• Flexibility: Easy to change JSON structure without affecting Model

8. Common Classes

Classes used by multiple components are in the seedu.coursebook.commons package.

8.1 Commons Core

Config

• Stores application configuration (log level, user prefs file path)
• Loaded from config.json on startup

LogsCenter

• Centralized logging infrastructure
• Provides logger instances to all components
• Log levels: SEVERE, WARNING, INFO, FINE, FINER, FINEST
• Logs to both console and file (coursebook.log)

GuiSettings

• Stores GUI window settings (size, position)
• Persisted in user preferences

Version

• Represents application version (major.minor.patch + early access flag)
• Current version: 1.5 (with early access)

Index

• Wrapper class for 1-based indices
• Prevents off-by-one errors (internally stores 0-based, exposes 1-based)
• Used throughout Logic and Model for list operations

8.2 Commons Exceptions

DataLoadingException

• Thrown when data files cannot be loaded (missing, corrupted, permission denied)

IllegalValueException

• Thrown when data validation fails during deserialization (e.g., invalid email format in JSON)

8.3 Commons Utilities

StringUtil

• String manipulation helpers (e.g., containsWordIgnoreCase(), getDetails() for exception messages)

FileUtil

• File path validation and operations (e.g., isValidPath(), createIfMissing())

JsonUtil

• JSON serialization/deserialization wrapper around Jackson
• Generic methods: serializeObjectToJsonFile(), deserializeObjectFromJsonFile()

ConfigUtil

• Config file read/write operations

CollectionUtil

• Collection validation helpers (e.g., requireAllNonNull())

AppUtil

• Application-wide validation utilities (e.g., checkArgument())

9. Implementation Details

9.1 Course Color Management

Challenge: Maintain consistent course colors across all persons while allowing per-course color customization.

Implementation:

CourseBook uses a hybrid approach:

1. Each Person object contains a Set<Course>, and each Course has a CourseColor enum value.
2. When adding a course to a person:
   • If the course code already exists in the system (found in another person), the existing color is used (enforced by AddCommand and AddCourseCommand)
   • If the course is new, the user-specified color is used (defaults to GREEN if not specified)
3. EditCourseColorCommand changes the color globally:
   • Model#setCourseColor(String courseCode, CourseColor color) iterates through all persons
   • Creates updated Course objects with the new color
   • Rebuilds the entire CourseBook with updated persons
   • Commits the change (enables undo)

Code Pointer:

• ModelManager.java:233-254 - setCourseColor() method
• AddCommand.java - Course color resolution logic
• EditCourseColorCommand.java - Global color update

Design Rationale:

• Pros: Simple implementation, works with current architecture, supports undo/redo
• Cons: O(n) complexity for color updates (n = number of persons)
• Trade-off: Acceptable for typical usage (few color changes, ≤1000 persons)

9.2 Delete Confirmation Dialog

Challenge: Prevent accidental deletions while maintaining CLI efficiency.

Implementation:

CourseBook uses a two-phase deletion process:

1. Phase 1 - Prepare: DeleteCommand.execute():
   • Validates indices/names
   • Identifies persons to be deleted
   • Returns CommandResult with requiresConfirmation = true and personsToDelete list
2. Phase 2 - Confirm: User sees dialog via MainWindow:
   • If user clicks OK → ConfirmDeleteCommand is executed
   • If user clicks Cancel → no action taken
3. Actual Deletion: ConfirmDeleteCommand.execute():
   • Deletes persons from model
   • Commits change
   • Returns success message

Code Pointers:

• DeleteCommand.java - Phase 1 logic
• ConfirmDeleteCommand.java - Phase 2 logic
• MainWindow.java - Dialog display and ConfirmDeleteCommand invocation

Design Rationale:

• Pros: Prevents accidental deletions, gives user chance to review
• Cons: Requires two steps (less efficient than one-shot delete)
• Trade-off: Safety over speed for irreversible operations

9.3 Theme Persistence in Undo/Redo

Challenge: Theme changes should be undoable, but theme is not part of the CourseBook model.

Implementation:

1. Theme Storage: CourseBook has a currentTheme field (enum: DARK, BLUE, LOVE, TREE)
2. Theme Change: ThemeCommand.execute() calls model.setCurrentTheme() which:
   • Updates versionedCourseBook.setCurrentTheme()
   • Returns CommandResult with CSS file paths
   • MainWindow applies CSS
   • ThemeCommand then calls model.commitCourseBook() (saves state for undo)
3. Undo/Redo with Theme Detection:
   • ModelManager.undoCourseBook() and redoCourseBook() detect if theme changed during undo/redo
   • If theme changed, themeChangedDuringUndo flag is set
   • UndoCommand and RedoCommand check this flag
   • If flag is true, CommandResult includes theme CSS file paths
   • UI applies the theme

Code Pointers:

• CourseBook.java - currentTheme field
• VersionedCourseBook.java - Theme field is part of snapshots
• ModelManager.java:203-225 - Theme detection during undo/redo
• UndoCommand.java and RedoCommand.java - Theme CSS handling in CommandResult

Design Rationale:

• Pros: Theme changes are undoable, consistent with other commands
• Cons: Slightly complex logic for detecting theme changes during undo/redo
• Trade-off: Consistency (all changes are undoable) over implementation simplicity

9.4 Birthday Sorting

Challenge: Sort persons by “days until next birthday” (considering current year vs. next year).

Implementation:

1. Birthday Normalization:
   • For each person, compute their next birthday date
   • If birthday has passed this year → use next year’s date
   • If birthday hasn’t passed this year → use this year’s date
2. Sorting:
   • Create a Comparator<Person> that compares normalized birthday dates
   • Persons without birthdays are placed at the end
3. Application:
   • SortBirthdayCommand.execute() calls model.sortSelectedPersons(comparator)
   • ModelManager.sortSelectedPersons() rebuilds CourseBook in sorted order
   • Commits change (enables undo)

Code Pointers:

• SortBirthdayCommand.java - Comparator logic
• Birthday.java - Date parsing and normalization utilities
• ModelManager.java:173-187 - Sorting implementation

Design Rationale:

• Pros: Intuitive behavior (upcoming birthdays first), handles year boundaries correctly
• Cons: O(n log n) sorting operation
• Trade-off: Acceptable performance for typical usage

9.5 Favorite Status Preservation

Challenge: Favorite status should persist across edits and undo/redo operations.

Implementation:

1. Favorite as Person Field:
   • Person has an isFavourite boolean field
   • Immutable like other Person fields
2. Edit Command:
   • EditCommand does not touch isFavourite field
   • EditPersonDescriptor doesn’t have a favorite field
   • When creating edited person, existing favorite status is preserved
3. Undo/Redo:
   • Since isFavourite is part of Person, it’s automatically saved in undo/redo snapshots

Code Pointers:

• Person.java - isFavourite field
• EditCommand.java - Favorite preservation logic
• FavouriteCommand.java and UnfavouriteCommand.java - Set favorite status

Design Rationale:

• Pros: Simple, consistent with other Person fields
• Cons: None
• Trade-off: N/A (clear best approach)

10. Logging

10.1 Logging Infrastructure

CourseBook uses java.util.logging package through a centralized LogsCenter class.

Log Levels (highest to lowest severity):

• SEVERE - Critical errors that prevent functionality
• WARNING - Recoverable errors or unexpected situations
• INFO - Key application events (startup, shutdown, user commands)
• FINE - Detailed tracing for debugging
• FINER - Very detailed tracing
• FINEST - Extremely detailed tracing

10.2 Log Output

Console Output:

• Only INFO and above are logged to console by default
• Configurable via config.json

File Output:

• All levels logged to coursebook.log
• File is created in the same directory as the JAR file
• Rotated when it exceeds 5MB

10.3 Using Logs

Obtaining a Logger:

import seedu.coursebook.commons.core.LogsCenter;

public class MyClass {
    private static final Logger logger = LogsCenter.getLogger(MyClass.class);

    public void myMethod() {
        logger.info("Executing myMethod");
        logger.fine("Detailed information: " + details);
    }
}

Logging Best Practices:

• Log user commands at INFO level (see LogicManager.java:57)
• Log data loading/saving at INFO level
• Log warnings for data corruption or recoverable errors
• Log severe errors for unrecoverable errors
• Avoid logging sensitive data (passwords, etc.)
• Use appropriate log levels (don’t log everything at INFO)

10.4 Configuration

Log level is configured in config.json:

{
  "logLevel": "INFO"
}

11. Configuration

Refer to the guide Configuration guide.

Key Configuration Files:

• config.json - Application config (log level, user prefs path)
• preferences.json - User preferences (window size, theme, data file path)
• coursebook.json - Data file (persons, courses)

12. Documentation, logging, configuration, dev-ops

• Documentation guide
• Logging guide
• Configuration guide
• DevOps guide

13. Appendix: Requirements

13.1 Product Scope

Target user profile:

• Is a university student
• Has a need to manage a significant number of academic contacts (classmates, professors, TAs)
• Takes multiple courses/modules each semester
• Wants to easily identify and connect with classmates in specific courses
• Prefers desktop apps over other types
• Can type fast
• Prefers typing to mouse interactions
• Is reasonably comfortable using CLI apps
• Values quick access to course-related contact information
• Seeks academic collaboration and support from peers

Value proposition:

CourseBook helps university students efficiently manage and organize their academic contacts by course affiliation, making it easy to identify classmates, access instructor information, and foster academic collaboration within specific modules. It is faster than typical mouse-driven GUI apps for users who can type fast.

13.2 User Stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

13.3 Use Cases

(For all use cases below, the System is the CourseBook and the Actor is the user, unless specified otherwise)

Use Case: UC01 - Add a Contact

MSS

1. User enters command to add a new person with name, phone, email, address, and optionally tags/courses.
2. CourseBook validates all fields.
3. CourseBook checks for duplicates (by name/email/phone).
4. CourseBook adds the contact to in-memory data.
5. CourseBook updates the UI to show the new contact.
6. CourseBook persists the change to the JSON file.

7. CourseBook displays success message.

   Use case ends.

Extensions

• 1a. Missing required fields (name, phone, email, or address):
  • 1a1. CourseBook shows error: “Invalid command format!”
  • Use case ends.
• 2a. Invalid field format (e.g., non-numeric phone, invalid email):
  • 2a1. CourseBook shows field-specific error message.
  • Use case resumes at step 1.
• 3a. Duplicate name, email, or phone exists:
  • 3a1. CourseBook shows: “This person already exists in the address book.”
  • Use case ends.

Use Case: UC02 - Delete a Contact

MSS

1. User requests to list persons (UC03) or find persons (UC05).
2. CourseBook shows a list of persons.
3. User requests to delete a specific person by index or name.
4. CourseBook displays a confirmation dialog with the person(s) to be deleted.
5. User confirms deletion.
6. CourseBook deletes the person.
7. CourseBook updates the UI.
8. CourseBook persists the change.

9. CourseBook displays success message.

   Use case ends.

Extensions

• 2a. The list is empty:
  • Use case ends.
• 3a. The given index is invalid:
  • 3a1. CourseBook shows an error message.
  • Use case resumes at step 2.
• 3b. The given name does not match any contact:
  • 3b1. CourseBook shows “No such contact found!”
  • Use case resumes at step 2.
• 5a. User cancels deletion:
  • Use case ends.

Use Case: UC03 - List All Contacts

MSS

1. User enters list command.

2. CourseBook displays all contacts in the person list panel.

   Use case ends.

Extensions

• 1a. No contacts exist:
  • 1a1. CourseBook shows an empty list.
  • Use case ends.

Use Case: UC04 - List Contacts by Course

MSS

1. User enters command to list contacts by a specific course code.
2. CourseBook normalizes the course code (trim + uppercase).
3. CourseBook finds all contacts enrolled in that course.

4. CourseBook displays the matching contacts in the person list panel.

   Use case ends.

Extensions

• 1a. Missing course code:
  • 1a1. CourseBook shows error: “Invalid command format!”
  • Use case ends.
• 3a. Course does not exist or no contacts are enrolled:
  • 3a1. CourseBook shows “No such course: {course code}”
  • 3a2. CourseBook displays an empty list.
  • Use case ends.

Use Case: UC05 - Find Contacts by Keywords

MSS

1. User enters command to find contacts by keywords in specific fields (name, phone, email, address, tags).
2. CourseBook parses the keywords and prefixes.
3. CourseBook filters the person list to show matching contacts.
4. CourseBook displays the filtered list in the person list panel.

5. CourseBook shows the number of persons listed.

   Use case ends.

Extensions

• 2a. Invalid prefix or field format:
  • 2a1. CourseBook shows error with correct format.
  • Use case ends.
• 3a. No contacts match the keywords:
  • 3a1. CourseBook shows “No such contact found”
  • 3a2. CourseBook displays an empty list.
  • Use case ends.

Use Case: UC06 - Edit a Contact

MSS

1. User requests to list persons (UC03) or find persons (UC05).
2. CourseBook shows a list of persons.
3. User enters command to edit a specific person with new values for one or more fields.
4. CourseBook validates the fields.
5. CourseBook checks that the edited person doesn’t create a duplicate.
6. CourseBook updates the person with the new values.
7. CourseBook updates the UI.
8. CourseBook persists the change.

9. CourseBook displays success message.

   Use case ends.

Extensions

• 3a. No fields specified:
  • 3a1. CourseBook shows “At least one field to edit must be provided.”
  • Use case resumes at step 2.
• 3b. Invalid index:
  • 3b1. CourseBook shows “The person index provided is invalid”
  • Use case resumes at step 2.
• 4a. Invalid field format:
  • 4a1. CourseBook shows field-specific error message.
  • Use case resumes at step 2.
• 5a. Edited person creates a duplicate:
  • 5a1. CourseBook shows “This person already exists in the address book.”
  • Use case resumes at step 2.

Use Case: UC07 - Add Course to Contact

MSS

1. User requests to list persons (UC03) or find persons (UC05).
2. CourseBook shows a list of persons.
3. User enters command to add one or more courses to a specific person.
4. CourseBook validates the course codes and colors.
5. CourseBook checks if the person already has any of the specified courses.
6. CourseBook resolves course colors (uses existing global color or user-specified color).
7. CourseBook adds the courses to the person.
8. CourseBook updates the UI.
9. CourseBook persists the change.
10. CourseBook displays success message.

Use case ends.

Extensions

• 3a. Invalid index:
  • 3a1. CourseBook shows “The person index provided is invalid”
  • Use case resumes at step 2.
• 4a. Invalid course code format:
  • 4a1. CourseBook shows course code validation error.
  • Use case resumes at step 2.
• 5a. Person already has one or more of the courses:
  • 5a1. CourseBook shows “This person already has one or more of these courses”
  • Use case resumes at step 2.

Use Case: UC08 - Undo Last Command

MSS

1. User executes a command that modifies the course book (add, edit, delete, etc.).
2. User realizes a mistake and enters undo command.
3. CourseBook checks if there are any undoable states.
4. CourseBook restores the previous course book state.
5. CourseBook checks if theme changed during undo.
6. CourseBook updates the UI (and applies theme if changed).

7. CourseBook displays “Undo success!”

   Use case ends.

Extensions

• 3a. No undoable states (at the beginning of history):
  • 3a1. CourseBook shows “No more commands to undo!”
  • Use case ends.

Use Case: UC09 - Redo Last Undone Command

MSS

1. User has undone one or more commands (UC08).
2. User enters redo command.
3. CourseBook checks if there are any redoable states.
4. CourseBook restores the next course book state.
5. CourseBook checks if theme changed during redo.
6. CourseBook updates the UI (and applies theme if changed).

7. CourseBook displays “Redo success!”

   Use case ends.

Extensions

• 3a. No redoable states (at the end of history or user made a new change after undo):
  • 3a1. CourseBook shows “No more commands to redo!”
  • Use case ends.

Use Case: UC10 - Change Theme

MSS

1. User enters command to change theme to a specific theme (dark, blue, love, tree).
2. CourseBook validates the theme name.
3. CourseBook checks if the target theme is different from the current theme.
4. CourseBook updates the current theme in the model.
5. CourseBook commits the change (for undo/redo).
6. CourseBook returns CommandResult with CSS file paths.
7. UI applies the new theme stylesheets.
8. CourseBook persists user preferences.

9. CourseBook displays “Theme changed to: {theme name}”

   Use case ends.

Extensions

• 2a. Invalid theme name:
  • 2a1. CourseBook shows “Invalid theme name. Available themes: dark, blue, love, tree”
  • Use case ends.
• 3a. Target theme is the same as current theme:
  • 3a1. CourseBook shows “Theme is already {theme name}!”
  • Use case ends.

13.4 Non-Functional Requirements

1. Platform Compatibility: Should work on any mainstream OS as long as it has Java 17 or above installed.

2. Performance - Data Capacity: Should be able to hold up to 1000 persons without noticeable sluggishness in performance for typical usage (command execution <1 second, UI updates <500ms).

3. Performance - Command Response Time: Results of commands should be returned within 1 second to ensure a smooth user experience.

4. Usability: A user with above-average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.

5. CLI-First Design: A user should be able to complete all tasks using the command-line interface without needing to use the mouse.

6. Reliability - Data Integrity: Application data should be automatically saved after every command that modifies data. Data should not be lost if the application crashes (last saved state is preserved).

7. Reliability - Uptime: The application should aim for less than 1 hour of downtime per month to ensure continuous availability for users (assuming proper system maintenance).

8. Maintainability - Bug Resolution: Developers should resolve critical bugs within 1 day of detection. Quick issue resolution is vital for maintaining a positive user experience.

9. Maintainability - Code Quality: Code should follow established Java coding standards (Checkstyle compliant) and include comprehensive JavaDocs for public APIs.

10. Security - No Interference with Antivirus: The application should not interfere with existing antivirus software. This compatibility is essential for ensuring seamless integration into users’ workflows.

11. Security - No Network Access: The application should not require internet connectivity and should not transmit any user data over the network.

12. Portability - Data Transfer: Users should be able to transfer their data to another computer by copying the data file. No additional setup or conversion should be required.

13. Extensibility - Plugin Architecture: The codebase should support easy addition of new commands without requiring changes to existing commands or core components.

14. Documentation: The product should come with comprehensive user and developer documentation.

13.5 Glossary

14. Appendix: Effort

14.1 Difficulty Level

CourseBook represents a moderate to high difficulty extension of AB3. While the core architecture remained similar, significant effort was invested in:

1. Course Management System
   • Implementing global course color management (ensuring consistency across all persons)
   • Dynamically updating course lists from person enrollments
   • Resolving color conflicts when adding courses
2. Enhanced Undo/Redo
   • Extending undo/redo to support theme changes
   • Detecting theme changes during undo/redo operations
   • Ensuring theme persistence in snapshots
3. Two-Phase Deletion
   • Implementing confirmation dialog for destructive operations
   • Supporting bulk deletion with mixed valid/invalid indices
   • Designing ConfirmDeleteCommand for internal use
4. Advanced Search & Filtering
   • Supporting multi-field search with OR logic
   • Implementing partial/substring matching
   • Handling multiple keywords per field
5. Birthday Management & Sorting
   • Implementing birthday normalization logic (current year vs. next year)
   • Sorting by “days until next birthday”
   • Handling edge cases (leap years, invalid dates)
6. Theming System
   • Supporting 4 distinct themes with CSS
   • Making theme changes undoable
   • Persisting theme in both undo/redo history and user preferences

14.2 Challenges Faced

Challenge 1: Global Course Color Consistency

Problem: When a user adds CS2103T with color YELLOW to Person A, then adds CS2103T with color BLUE to Person B, what should happen?

Solution: Implemented a hybrid approach where:

• Existing course codes enforce their current color
• New course codes accept user-specified color or default to GREEN
• EditCourseColorCommand globally updates all instances of a course code

Effort: ~10 hours design and implementation

Challenge 2: Theme Persistence in Undo/Redo

Problem: Theme is a UI concern, but undo/redo operates on Model data. How to make theme changes undoable without violating architectural boundaries?

Solution: Added currentTheme field to CourseBook (Model), with special handling in ModelManager to detect theme changes during undo/redo and communicate them to UI via CommandResult.

Effort: ~7 hours design and implementation

Challenge 3: Two-Phase Deletion with Bulk Operations

Problem: Deleting multiple persons (e.g., delete 1 2 3) requires confirmation, but some indices might be invalid. How to show meaningful confirmation dialog?

Solution: DeleteCommand validates all indices/names, separates valid and invalid, returns CommandResult with confirmation request. MainWindow displays dialog. ConfirmDeleteCommand performs actual deletion.

Effort: ~13 hours design and implementation

14.3 Effort Comparison to AB3

Overall Effort Multiplier: ~2.5x relative to AB3

14.4 Achievements

1. Comprehensive Feature Set: 27 commands covering person management, course management, favorites, birthdays, sorting, searching, undo/redo, theming, and more.

2. Robust Architecture: Clean separation of concerns, strong adherence to SOLID principles, extensible design.

3. Excellent User Experience: Intuitive commands, helpful error messages, confirmation dialogs for destructive operations, multiple themes, fast performance.

4. Thorough Documentation: Comprehensive Developer Guide (this document) and User Guide with detailed command reference.

14.5 Effort Summary

Total Effort (Team of 5):

• Design & Planning: ~30 person-hours
• Implementation: ~250 person-hours
• Documentation: ~60 person-hours
• Bug Fixing & Refinement: ~40 person-hours

Total: ~380 person-hours (~76 hours per team member over ~8 weeks)

15. Appendix: Planned Enhancements

Team Size: 5

Enhancement 1: Allow Birthday Deletion

Current Limitation: Once a birthday is added, it cannot be deleted. If a birthday is entered, the user cannot remove it.

Proposed Enhancement: Allow users to delete/remove birthday field using edit command.

Implementation:

• Update EditCommand to support empty birthday parameter (e.g., edit 1 b/) to delete birthday
• Update EditPersonDescriptor to distinguish between “no change” and “delete birthday”
• Add validation to prevent invalid dates from being added in the first place
• Update UI to handle missing birthday gracefully

Effort Estimate: ~1.5 hours

Enhancement 2: Module Code Validation

Current Limitation: Module codes do not have any validation or restrictions, allowing invalid codes like “ABC” or “12345”.

Proposed Enhancement: Add validation for module codes to ensure they follow standard university module code formats (e.g., CS2103T, MA1521, GEH1001).

Implementation:

• Add regex validation in Course class for module code format
• Update AddCommand and EditCommand parsers to validate module codes
• Display clear error messages for invalid module codes
• Support configurable module code patterns for different universities

Effort Estimate: ~2 hours

Enhancement 3: Confirmation Dialog for Clear Command

Current Limitation: The clear command immediately deletes all contacts without confirmation, risking accidental data loss.

Proposed Enhancement: Add a confirmation dialog before executing the clear command.

Implementation:

• Update ClearCommand to trigger confirmation dialog
• Add confirmation dialog UI component
• Only execute clear if user confirms
• Add option to bypass confirmation with flag (e.g., clear --force) for advanced users

Effort Estimate: ~1 hour

Enhancement 4: Support for International Phone Number Formats

Current Limitation: Phone numbers only accept digits; country codes with “+” and spaces (e.g., “+65 1234 5678”) are rejected.

Proposed Enhancement: Accept international phone number formats including “+” prefix and spaces for readability.

Implementation:

• Update Phone validation regex to accept “+”, spaces, and hyphens
• Normalize phone numbers for storage (remove spaces/hyphens)
• Display phone numbers in formatted style
• Support multiple international formats

Effort Estimate: ~2 hours

Enhancement 5: Persistent Theme Settings

Current Limitation: Theme selection is not saved and resets to default on restart.

Proposed Enhancement: Persist theme preference across application restarts.

Implementation:

• Add theme preference to UserPrefs class
• Save theme selection to preferences.json
• Load and apply saved theme on application startup
• Ensure theme preference survives application updates

Effort Estimate: ~1 hour

Enhancement 6: Persistent Course Tag Colors

Current Limitation: Color-coded course tags are default green and change on restart, so color changes are lost after app is closed.

Proposed Enhancement: Persist the color assigned to each course tag across restarts.

Implementation:

• Add color mapping to UserPrefs or create separate color configuration file
• Store course code to color mappings
• Load color mappings on startup and apply to course tags
• Ensure consistent color assignment for the same course

Effort Estimate: ~1 hours

Enhancement 7: Display What Will Be Undone

Current Limitation: Users cannot easily keep track of which command will be undone next. After performing multiple commands, it becomes unclear what the undo command will revert.

Proposed Enhancement: Improve the undo command feature to display what action will be undone before execution, and show a summary of what was actually undone afterward. This helps users better understand and confirm their undo operations.

Implementation:

• Maintain descriptive history stack of executed commands that can be undone
• Enhance the undo command to show a confirmation message detailing what was undone after execution.

Effort Estimate: ~8 hours

Enhancement 8: Fuzzy Search

Current Limitation: Search only supports exact substring matching.

Proposed Enhancement: Implement fuzzy search using Levenshtein distance or similar algorithm.

Implementation:

• Add FuzzySearchPredicate that accepts similarity threshold
• Update FindCommand to support fuzzy mode (e.g., find n/alic --fuzzy)
• Rank results by similarity score

Effort Estimate: ~5 hours

Enhancement 9: Keyboard Shortcuts for Commands

Current Limitation: All commands must be typed (no shortcuts).

Proposed Enhancement: Support keyboard shortcuts for common commands (e.g., Ctrl+L for list, Ctrl+F for find).

Implementation:

• Add keyboard event handlers in MainWindow
• Map shortcuts to command text
• Add shortcuts to help window

Effort Estimate: ~3 hours

Enhancement 10: Export to CSV/vCard

Current Limitation: No optimised way to export contacts for use in other applications.

Proposed Enhancement: Add export command to export contacts to CSV or vCard format.

Implementation:

• Add ExportCommand with format parameter (csv, vcf)
• Implement CSV and vCard serialization
• Add file chooser dialog for output path

Effort Estimate: ~7 hours

16. Summary

CourseBook is a robust, well-architected application for managing academic contacts. This Developer Guide provides comprehensive documentation of the system’s design, and implementation. Key highlights:

• Clean 4-layer architecture with strong separation of concerns
• 27 feature-rich commands covering all aspects of contact and course management
• Comprehensive undo/redo with theme persistence
• Extensible design following SOLID principles
• Thorough documentation for both users and developers

Whether you’re a new contributor, a student learning software architecture, or a teaching staff member evaluating the project, this guide should provide you with a deep understanding of CourseBook’s design and implementation.

For questions or contributions, please visit our GitHub repository.

End of Developer Guide
